#//Project Robot Robo-Cleaner
from tkinter import *
from tkinter import messagebox
from tkinter import ttk
import socket

root = Tk()
root.title("Robo-Cleaner")
root.resizable(False, False)
root.geometry("900x400")

# //Socket Connection & Socket Connection Windows
client = socket.socket()
port = 12345

def get_IP():
    vtn_ip = Tk()
    vtn_ip.geometry("275x100")
    vtn_ip.resizable(False,False)
    vtn_ip.title("Ajustes de la Conexión IP")

    inform = Label(vtn_ip,text="Dirección IP: ").place(x=10, y=10)
    addr = StringVar(vtn_ip)
    ip = ttk.Entry(vtn_ip, textvariable = addr).place(x=100, y=10)

    boton = Button(vtn_ip, text = "Establecer", command = lambda:[conection(addr.get()+""), vtn_ip.destroy()]).place(x=98, y=50)
    print(addr.get())

def conection(addr):
    port = 12345
    try:
        client.connect((addr, port))
        messagebox.showinfo("Mensaje Recibido", "El host se conectó al robot: \nDirección IP: {0}\nPuerto: {1}".format(addr,port))
    except socket.error:
        messagebox.showwarning("Error de conexión", "No se logró realizar la conexión. \nRevise la dirección IP e intentelo nuevamente. \nDirección IP: " + addr)
        get_IP()

# //Functions
def Upward(event):
    try:
        client.send(bytes([ord('i')]))
    except BrokenPipeError:
        print()

def Backwards(event):
    try:
        client.send(bytes([ord('k')]))
    except BrokenPipeError:
        print()

def LeftTurn(event):
    try:
        client.send(bytes([ord('j')]))
    except BrokenPipeError:
        print()

def RightTurn(event):
    try:
        client.send(bytes([ord('l')]))
    except BrokenPipeError:
        print()

def Rotate(event):
    try:
        client.send(bytes([ord('p')]))
    except BrokenPipeError:
        print()

def LeverUp():
    try:
        client.send(bytes([ord('y')]))
    except BrokenPipeError:
        messagebox.showerror("Error", "El robot no está conectado")

def LeverDown():
    try:
        client.send(bytes([ord('h')]))
    except BrokenPipeError:
        messagebox.showerror("Error", "El robot no está conectado")

def Automatic():
    try:
        client.send(bytes([ord('a')]))
    except BrokenPipeError:
        messagebox.showerror("Error", "El robot no está conectado")

def disconection():
    try:
        client.send(bytes([ord('q')]))
        messagebox.showinfo("Información", "El robot se desconectó correctamente")
    except BrokenPipeError:
        messagebox.showwarning("Advertencia", "No hay un robot conectado a la máquina")

def Halt(event):
    try:
        client.send(bytes([ord('w')]))
    except BrokenPipeError:
        messagebox.showerror("Error", "El robot no está conectado")

# //Set own directory for background image
check_photo = PhotoImage(file="checked.png")
exit_photo = PhotoImage(file="exit.png")
automatic_photo = PhotoImage(file="letter-a.png")
root_canvas = Canvas(root, width=900, height=400)
root_canvas.pack(fil="both", expand=True)
root_canvas.create_image(260, 100, image=check_photo, anchor="nw")
root_canvas.create_image(260, 140, image=exit_photo, anchor="nw")
root_canvas.create_image(260, 180, image=automatic_photo, anchor="nw")

# //Buttons of interface tkinter & labels

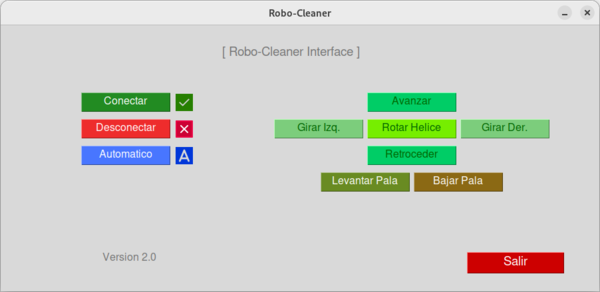

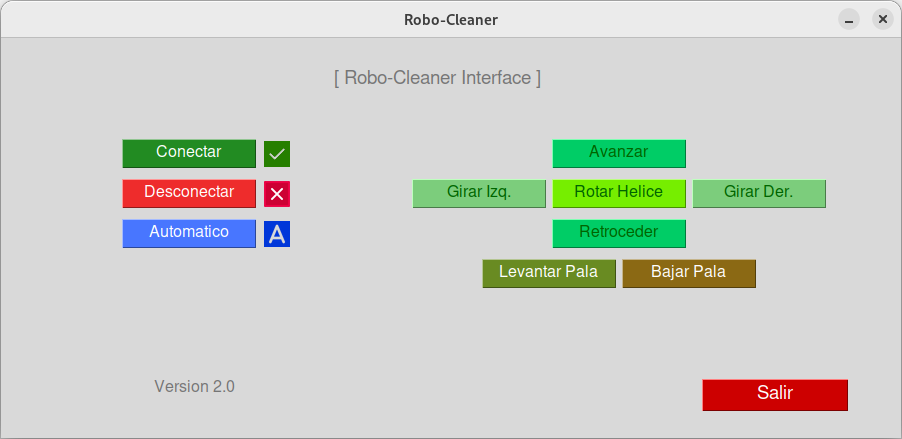

title_label = Label(root, text="[ Robo-Cleaner Interface ]", font=("Helvetica", 14), width=21, foreground="#757575").place(x=330, y=30)
version_label = Label(root, text="Version 2.0", font=("Helvetica", 12), width=16, foreground="#757575").place(x=120, y=340)
botton_connect = Button(root, text="Conectar", font=("Helvetica", 12), width=12, bg="ForestGreen", foreground="white", command=get_IP).place(x=120, y=100)
botton_disconect = Button(root, text="Desconectar", font=("Helvetica", 12), width=12, bg="FireBrick2", foreground="white", command=disconection).place(x=120, y=140)
botton_automatic = Button(root, text="Automatico", font=("Helvetica", 12), width=12, bg="RoyalBlue1", foreground="white",command=Automatic).place(x=120, y=180)
botton_forward = Button(root, text="Avanzar", font=("Helvetica",12), width=12, bg="SpringGreen3", foreground="DarkGreen")
botton_forward.place(x=550, y=100)
botton_forward.bind('<ButtonPress>',Upward)
botton_forward.bind('<ButtonRelease>',Halt)
botton_rotate = Button(root, text="Rotar Helice", font=("Helvetica", 12), width=12, bg="Chartreuse2", foreground="DarkGreen")
botton_rotate.place(x=550, y=140)
botton_rotate.bind('<ButtonPress>',Rotate)
botton_rotate.bind('<ButtonRelease>',Halt)
botton_rotate_left = Button(root, text="Girar Izq.", font=("Helvetica", 12), width=12, bg="PaleGreen3", foreground="DarkGreen")
botton_rotate_left.place(x=410, y=140)
botton_rotate_left.bind('<ButtonPress>',LeftTurn)
botton_rotate_left.bind('<ButtonRelease>',Halt)
botton_rotate_right = Button(root, text="Girar Der.", font=("Helvetica", 12), width=12, bg="PaleGreen3", foreground="DarkGreen")
botton_rotate_right.place(x=690, y=140)
botton_rotate_right.bind('<ButtonPress>',RightTurn)
botton_rotate_right.bind('<ButtonRelease>',Halt)
botton_backward = Button(root, text="Retroceder", font=("Helvetica", 12), width= 12, bg="SpringGreen3", foreground="DarkGreen")
botton_backward.place(x=550, y=180)
botton_backward.bind('<ButtonPress>',Backwards)
botton_backward.bind('<ButtonRelease>',Halt)
botton_lever_up = Button(root, text="Levantar Pala", font=("Helvetica", 12), width=12, bg="OliveDrab4",foreground="white", command=LeverUp)
botton_lever_up.place(x=480, y=220)
botton_lever_down = Button(root, text="Bajar Pala", font=("Helvetica", 12), width=12, bg="GoldenRod4",foreground="white", command=LeverDown)
botton_lever_down.place(x=620, y=220)
botton_close = Button(root, text=" Salir ", command=root.destroy, font=("Helvetica", 14), width=12, bg="Red3", foreground="white").place(x=700, y=340)

#Protocols & mainloop for root
root.protocol("WM_DELETE_WINDOWS")
root.mainloop()

#!/usr/bin/env python3
from ev3dev2.motor import SpeedPercent, MoveTank, LargeMotor, MediumMotor, OUTPUT_A, OUTPUT_B, OUTPUT_C ,OUTPUT_D
from ev3dev2.sensor import INPUT_1, INPUT_4
from ev3dev2.sensor.lego import UltrasonicSensor, ColorSensor

tank = MoveTank(OUTPUT_A, OUTPUT_D)

mot_rot= MediumMotor(OUTPUT_B)

mot_lev = MediumMotor(OUTPUT_C)

prox = UltrasonicSensor(INPUT_1)

col = ColorSensor(INPUT_4)

def Automatic():
    while (col.color != 6):
        while (prox.distance_centimeters_continuous > 5):
            tank.on(left_speed= 90, right_speed= 90)
            if (col.color == 6):
                tank.off(brake=True)
                break
        else:
            tank.off(brake=True)
            mot_rot.on_for_seconds(speed = 75, seconds = 1, brake=True)
    tank.off(brake=True)

def Upward():
    tank.on(left_speed= 90, right_speed= 90)

def Backwards():
    tank.on(left_speed= -90, right_speed= -90)

def LeftTurn():
    tank.on(left_speed= 90, right_speed= 0)

def RightTurn():
    tank.on(left_speed= 0, right_speed= 90)

def Rotate():
    mot_rot.on(speed = 75, brake=True)

def LeverUp():
    mot_lev.on_for_degrees(speed= 18, degrees= 90, brake= True)

def LeverDown():
    mot_lev.on_for_degrees(speed= 18, degrees= -90, brake= True)

def Halt():
    tank.off(brake=True)
    mot_rot.off(brake=True)

#!/usr/bin/env python3
import socket
from operations import *

conector = socket.socket()

puerto = 12345

conector.bind(('', puerto))

conector.listen(5)

conexion, addr = conector.accept()

while True:
    dato_puro = conexion.recv(1)
    key = dato_puro.decode("utf-8")

    if (key == 'i'):
        Upward()

    if (key == 'k'):
        Backwards()

    if (key == 'j'):
        LeftTurn()

    if (key == 'l'):
        RightTurn()

    if (key == 'p'):
        Rotate()

    if (key == 'y'):
        LeverUp()

    if (key == 'h'):
        LeverDown()

    if (key == 'a'):
        Automatic()

    if (key == 'q'):
        break

    if (key == 'w'):
        Halt()
